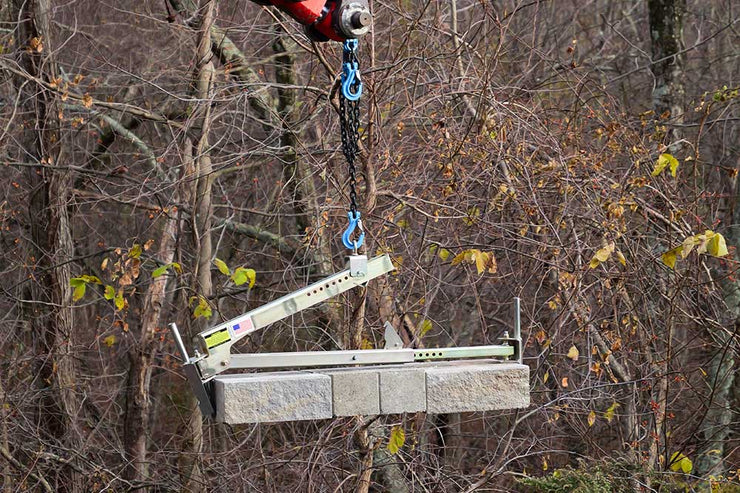

BL-450 Setting Multiple Cell Retaining Wall Blocks

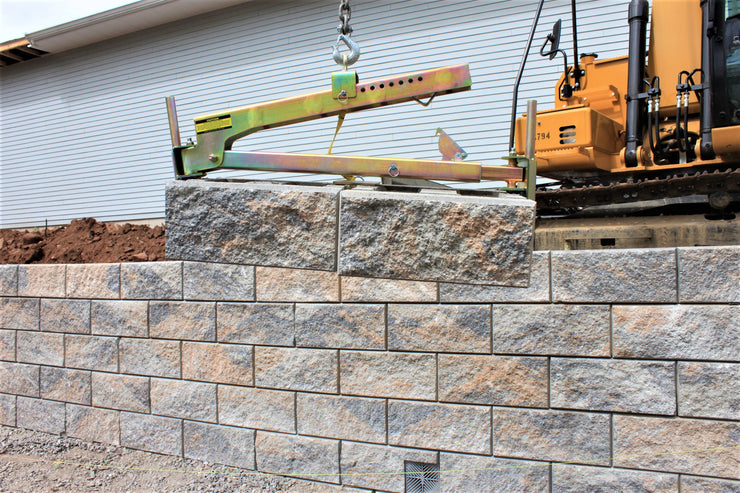

Excavator Using BL 450 Block Clamp

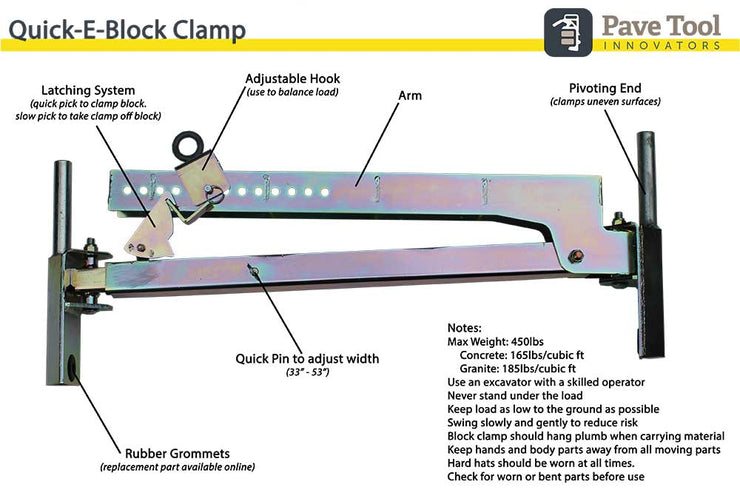

Spec sheet for BL-450

BL450 block clamp picks up to 450 pounds of wall block, step treads and more including irregular steps

Quick-E-BL 450 Block Clamp

BL450 block clamp picks up to 450 pounds of wall block, step treads and more including irregular steps

BL-450 Setting Multiple Cell Retaining Wall Blocks

Excavator Using BL 450 Block Clamp

Spec sheet for BL-450

Quick-E-BL 450

Item# NT021

$746.95 USD

The Quick-E-Block Clamp can grab multiple blocks from your pallets just as they are delivered to the job site.

Scroll Down to View Videos Please

A 3-man crew with no Geo-Grid can install about 300 - 500 sf of wall block a day.

Pairs well with: Quick-E-Adjustable Chain

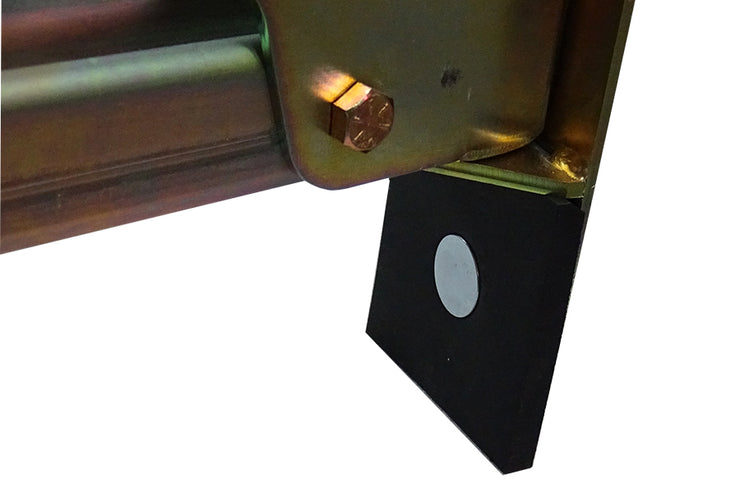

Quick-E-BL 450 Reinforced Replacement Pads Available.

Wedge sold Separately.

Clamp	Item#	Adjusts	Machine/Hand	Latching	Clamp Weight	Weight Rating
BL 3000	NT031	5"-53.5"	Machine	Self-Locking	200 Pounds	3,000 Pounds
BL 1300	52318	2"-23"	Machine	Auto-Latching	73 Pounds	1,300 Pounds
BL 980	NT042	0"-38"	Machine	Manual-Latching	72 Pounds	980 Pounds
BL 980 Accessories
Boulder Grab	NT042b	0"-38"	Machine	Manual-Latching	124.5 Pounds	980 Pounds
I-Spacer	NT046	11" Long
Wedge	NT047
BL 850	NT083	0"-16.5"	Machine	Auto-Latching	55 Pounds	850 Pounds
BL 450	NT021	31"-51"	Machine	Auto-Latching	42 Pounds	450 Pounds
BL 450 Accessories
Multi Block Clamp	NT033		Machine	Auto-Latching		1,200 Pounds
Wedge	NT047
BL 180	NT022	7"-18"	Machine/ Hand	Self-Locking	9 Pounds	180 Pounds
BL 100	NT071	3 Adjust. notches	Hand	Self-Latching	4 Pounds	100 Pounds

INSTRUCTIONS: Use the Quick-E-Block Clamp by pulling the bottom pin to adjust to the clamp width. The coupler is held in place with a second pin - it should be centered between the two clamping pads. Hook a rated chain, cable or strap to your machine and the clamp. You’re now ready to lay block with minimal effort! Quickly pick up on the chain manually or with your bucket to clamp the block. Set the block about 6” from the those last laid then pick up slowly on the chain to pick the clamp off the block. Now simply slide the blocks into place. When laying multiple cells with tapered sides, one block will be reversed. Simply spin the block around and slide it into place. You’re never lifting the block - just slide it.
NOTE: A hard hat should be worn at all times. Stay out of the swing zone and never get under the clamped block.
