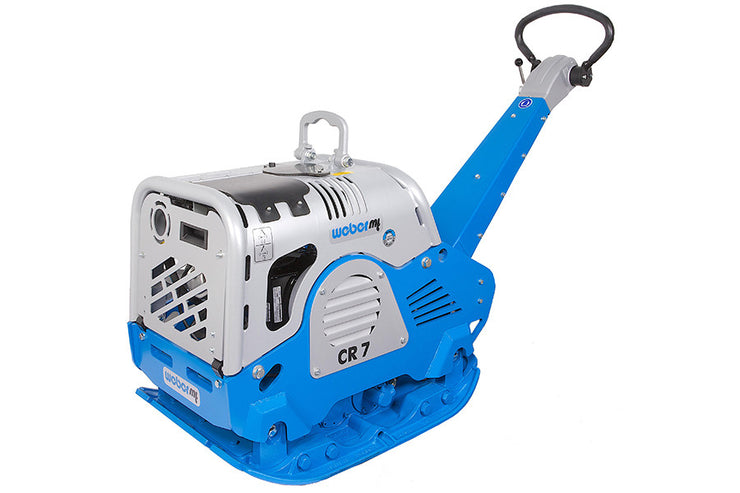

Weber MT CR 7 Honda Reversible Plate Compactor

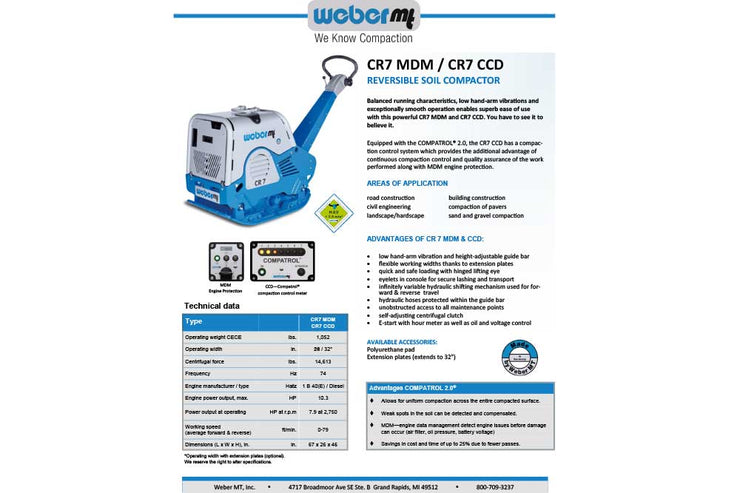

Weber CR-7 Compactor Specification Sheet

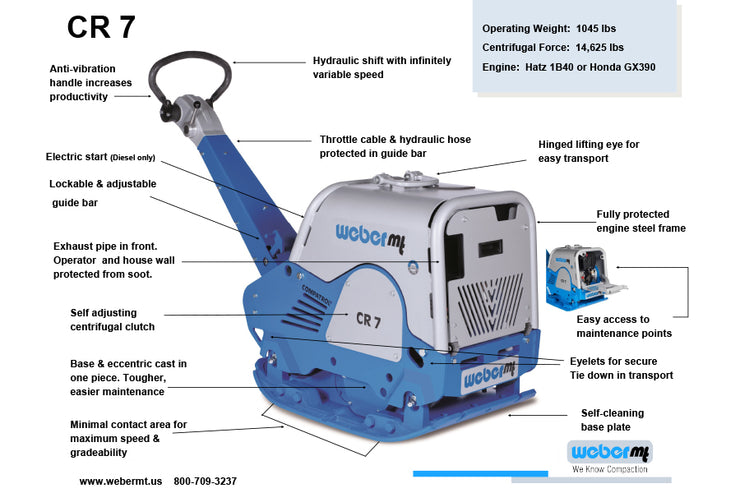

Weber MT CR7 Plate Compactor Technical Data Sheet

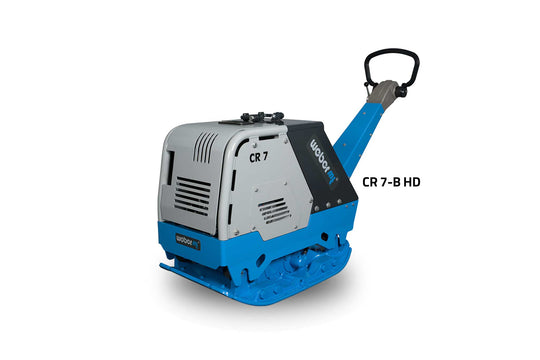

Weber CR 7 Honda

Item# 116641

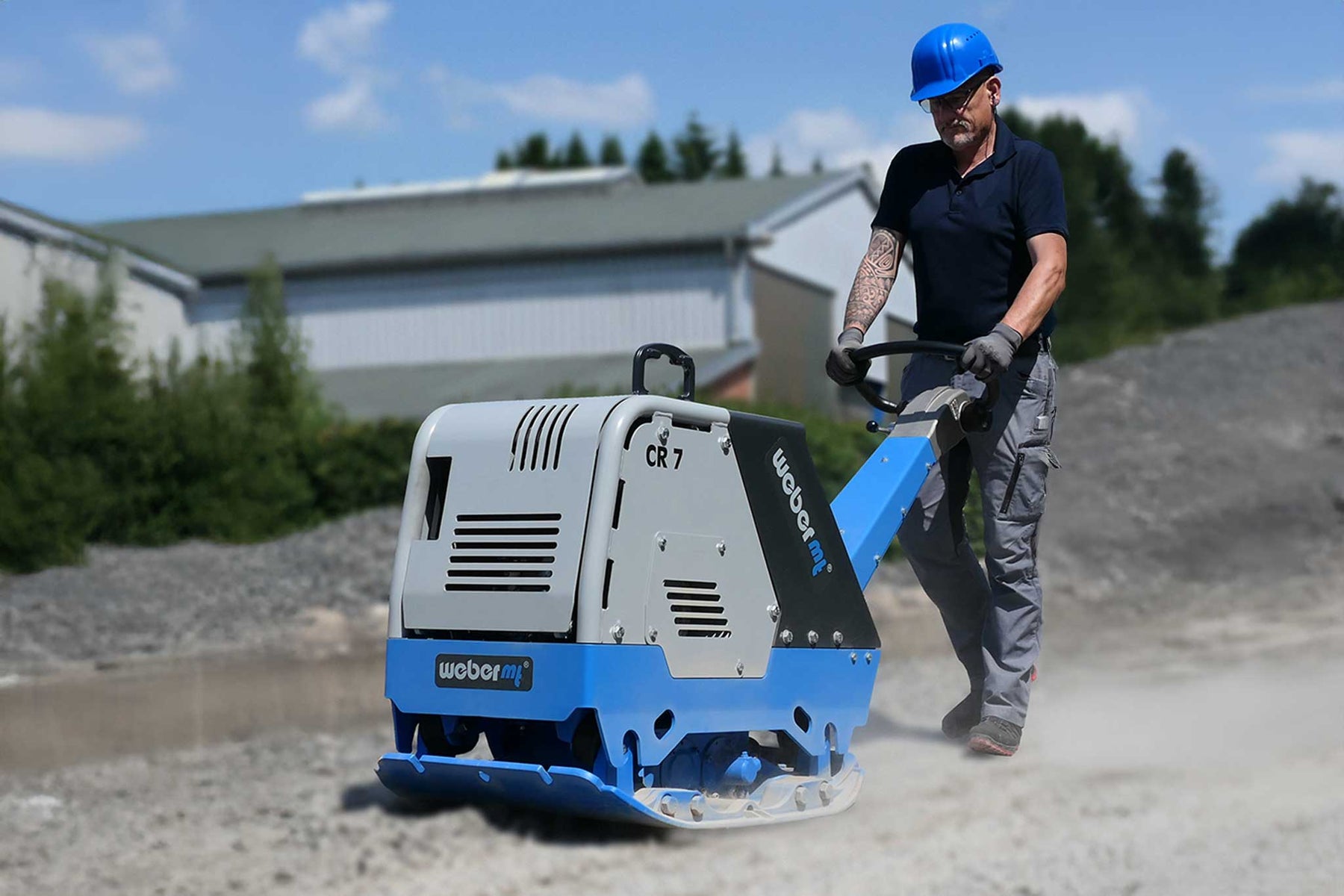

CR 7 reversible plate compactor - superior impact power and economical

Engine: Honda GX 390 / Hatz 1B40

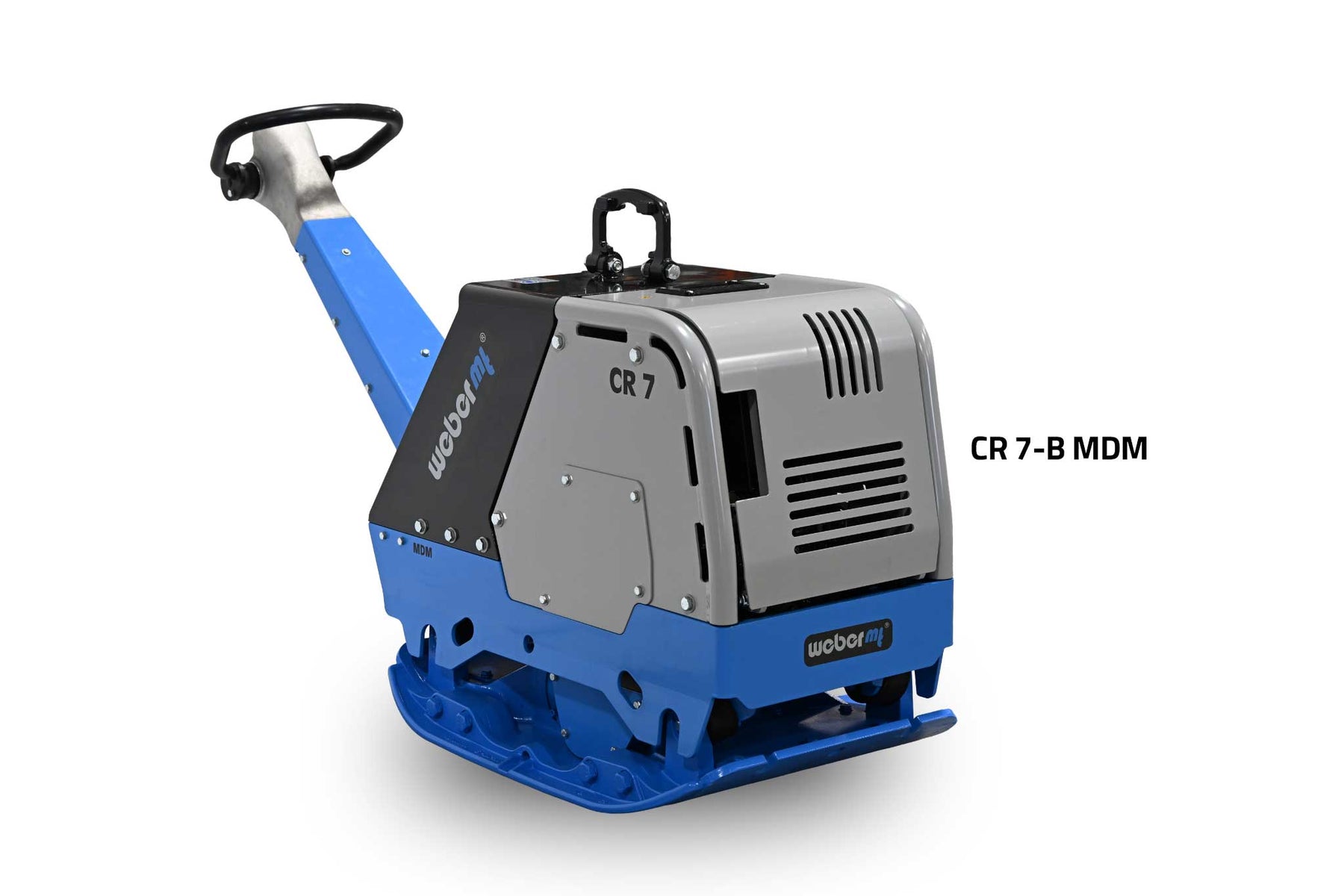

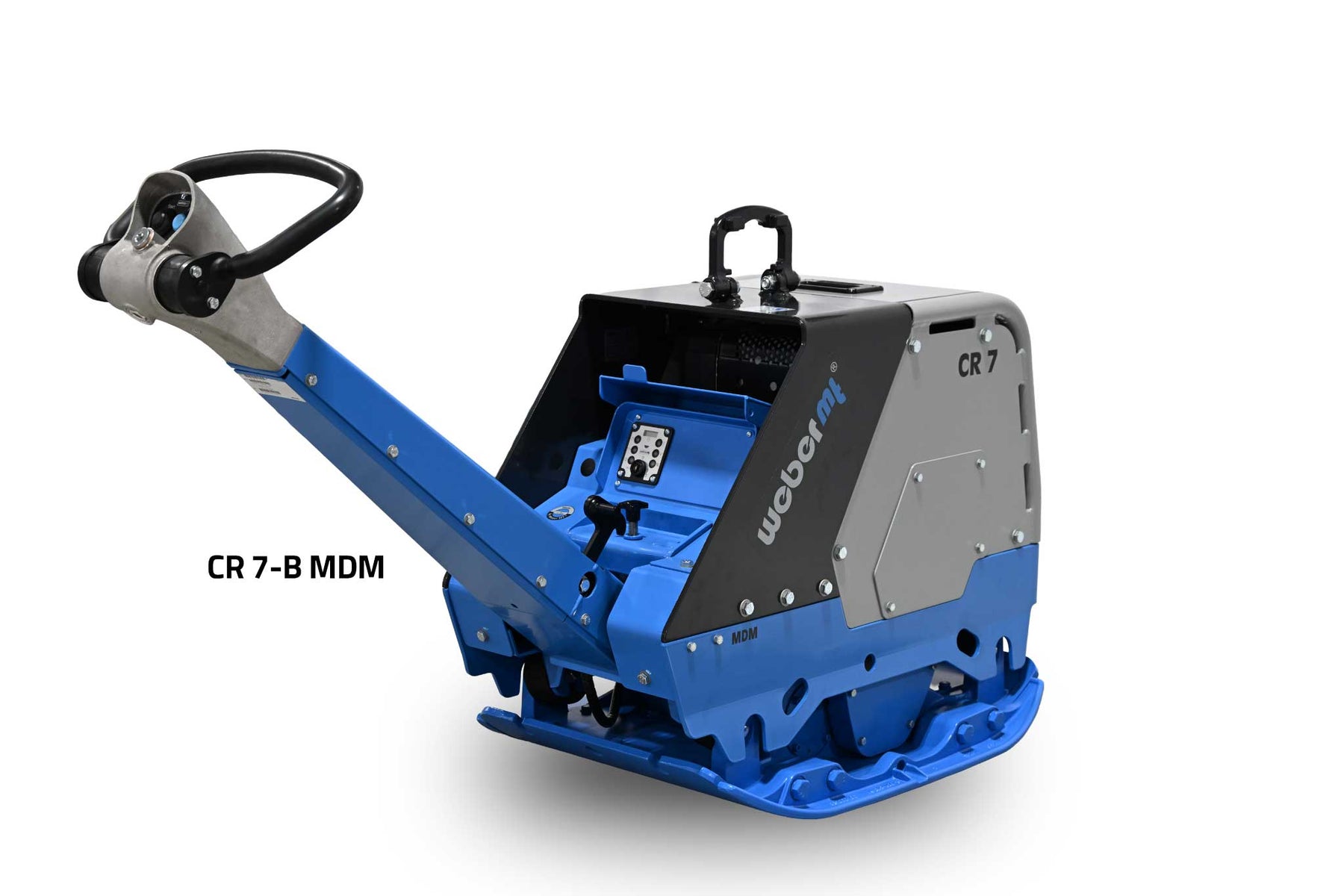

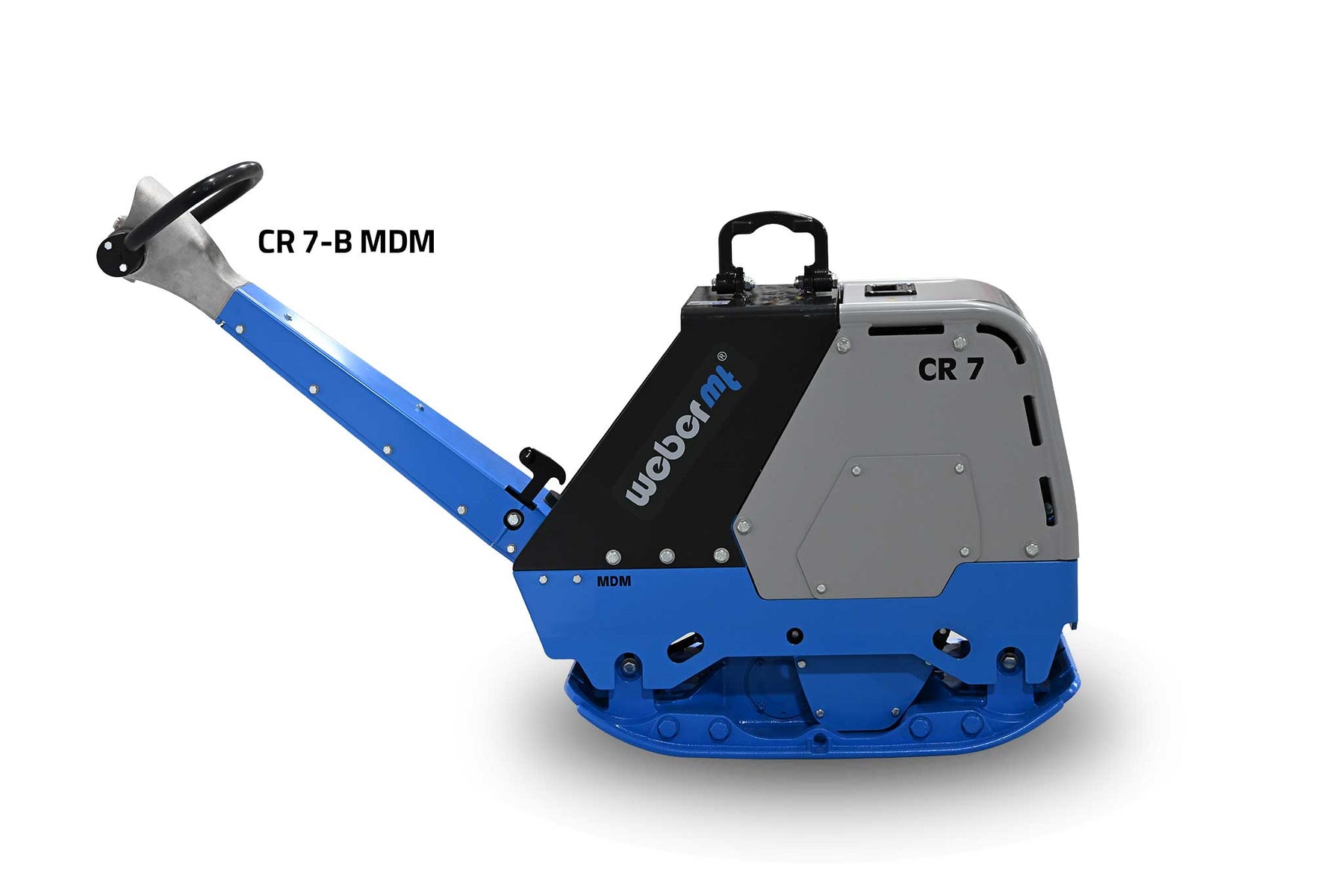

The CR 7 Honda and CR 7 MDM* are economical machines that deliver powerful compacting performance. They are available with a Hatz diesel engine or Honda gasoline engine.

For a wide variety of applications ranging from road construction and civil engineering to paving the CR 7 is the machine of choice.

Its balanced running characteristics and exceptionally smooth operation as well as its low hand-arm vibrations provide for superb ease of use.

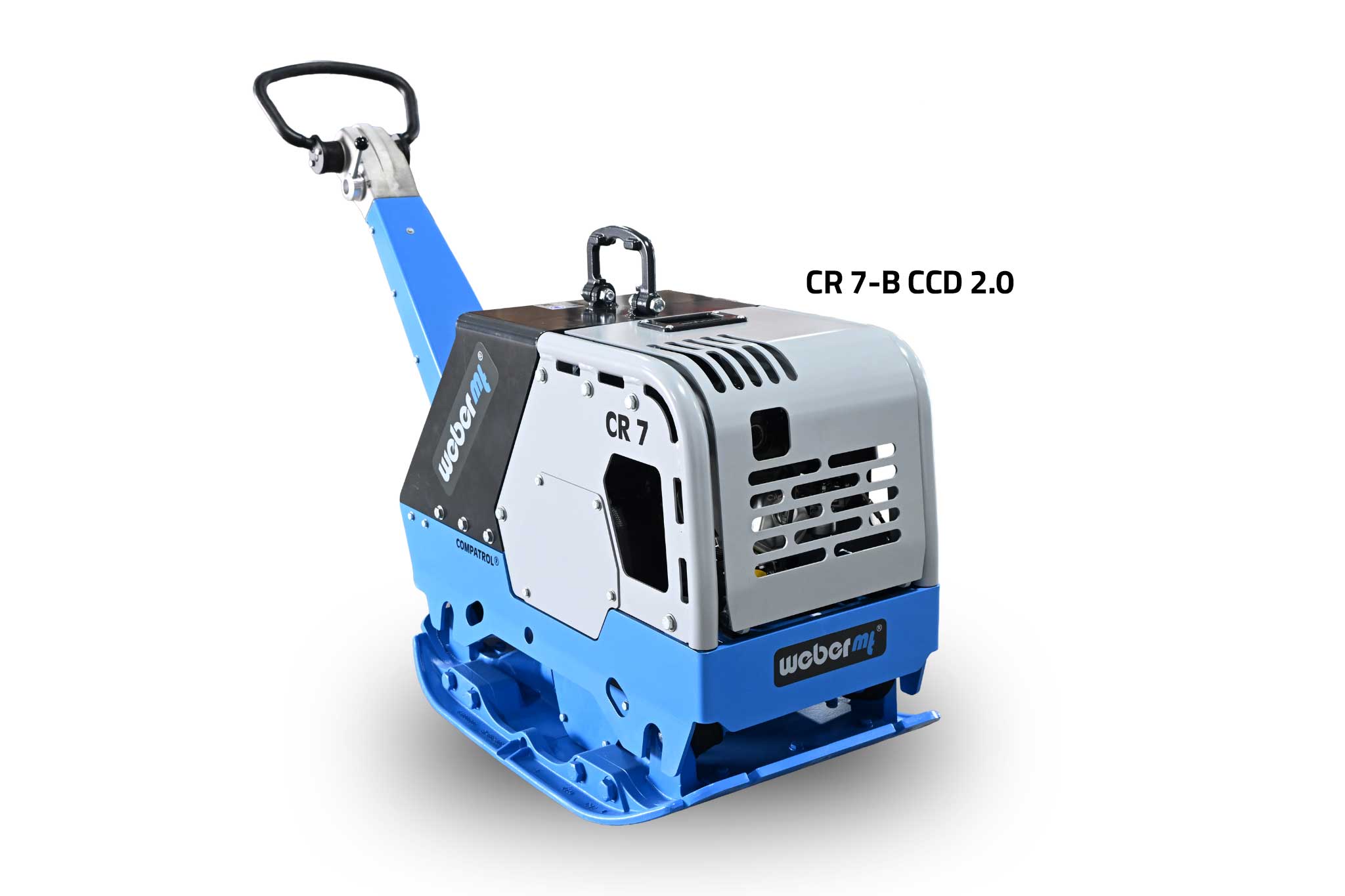

CR 7 CCD* is equipped with the COMPATROL® 2.0 compaction control system thus providing the additional advantage of continuous compaction control and quality assurance of the compaction work performed along with MDM engine protection.

The standard CR 7 includes:

low vibration guide bar

height-adjustable guide bar

hydraulic shift / infinitely variable forward and reverse travel

fully protected engine thanks to protection frame and engine enclosure

unobstructed access to all maintenance points

self-adjusting centrifugal clutch

E-start*

Looking to Finance this Compactor? It's quick and easy. Click here to apply.

** All CCD units - batteries are shipped dry

Item# Model Engine Wgt./lbs CF/lbs Hz W (in)
115510 CR 1-II HD GX120 203 3372 100 14
115614 CR 2 HD GX160 315 5620 100 18
116144 CR 3-II HD GX270 448 7868 80 20
116263 CR 5-II HD GX270 617 10150 75 22
116538 CR 6 HD GX390 794 12364 72 24
116540 CR 6 HD CCD GX390 855 12364 72 24

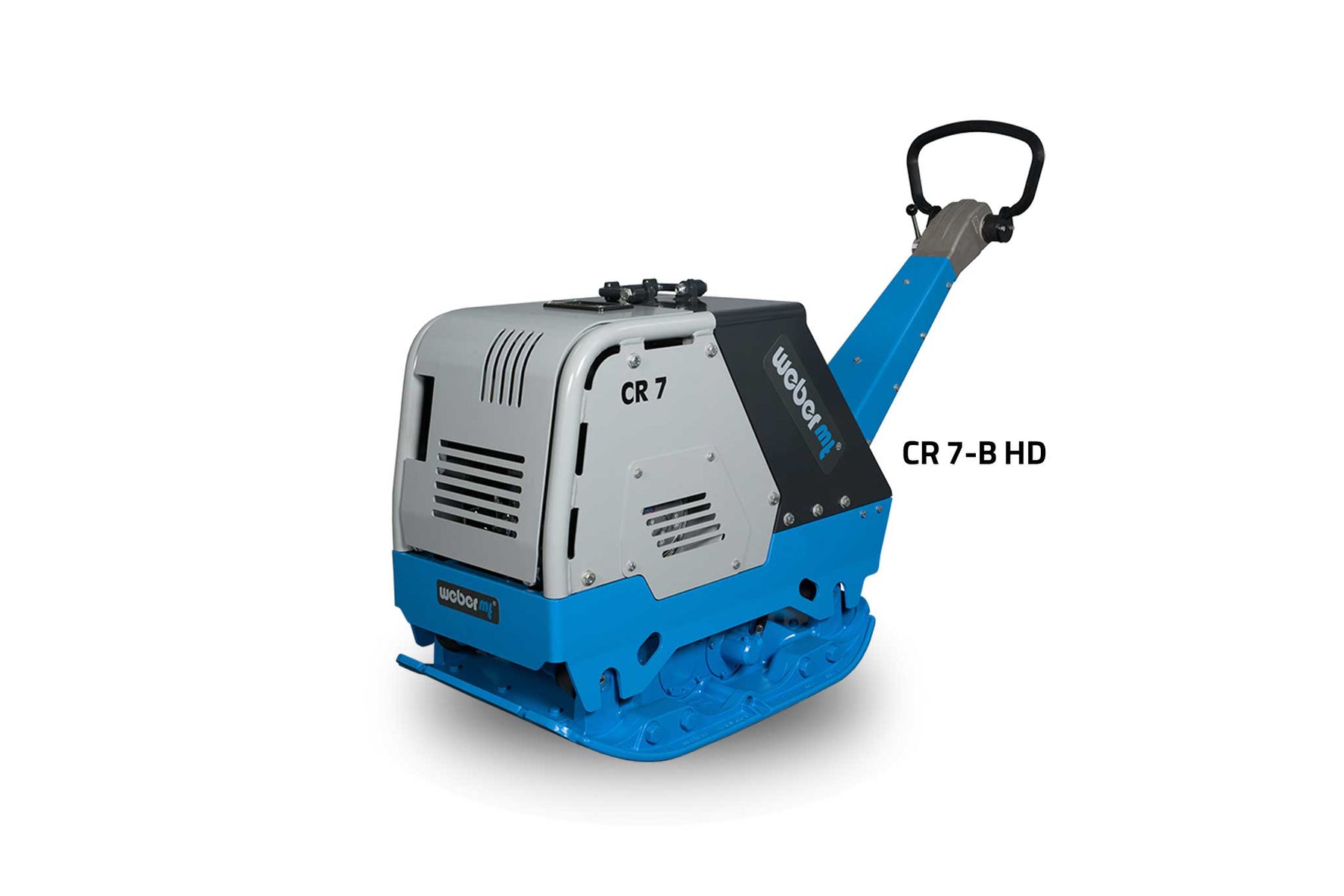

116641 CR 7-II HD GX390 937 14613 74 26
116645 CR 7 HD CCD GX390 948 14613 74 26
116643 CR 7 E1 MDM Hz 1B50 (E) 1052 14613 74 26
116644 CR 7 E1 CCD 2.0 HZ 1B50 (E) 1052 14613 74 26
116737 CR 8 E1 MDM HZ 1D90 (E) 1334 16860 67.5 28
116738 CR 8 E1 CCD 2.0 HZ 1D90 (E) 1334 16860 67.5 28
116828 CR 9 E1 MDM HZ 1D90(E) 1631 22480 65 30
116829 CR 9 E1 CCD 2.0 Hz 1D90(E) 1631 22480 65 30
116831 CR9 HD CCD GX630 1631 22480 65 30
